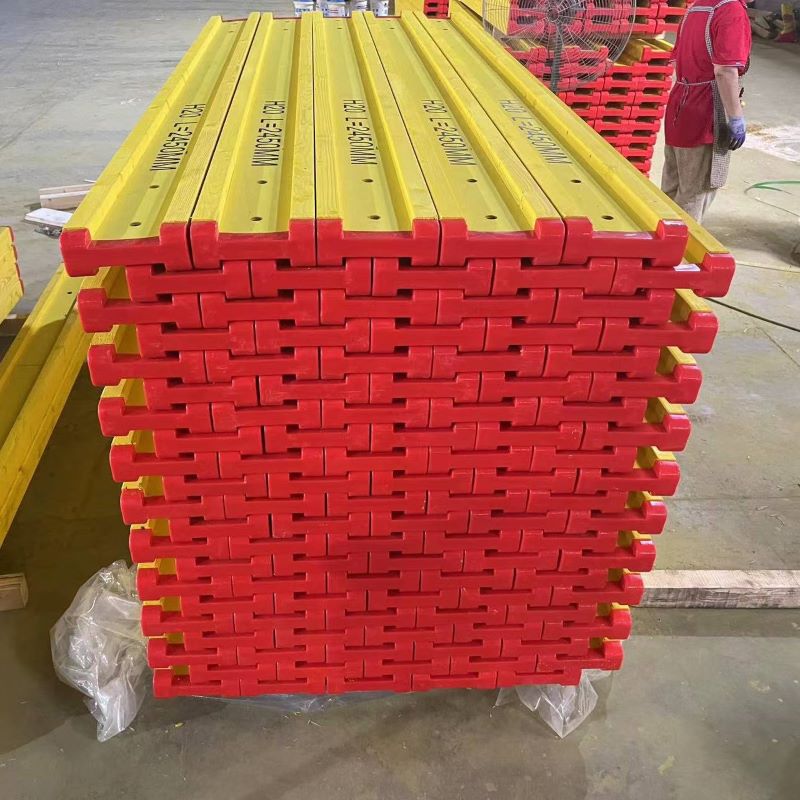

H20 Timber Beams high strength formwork support
Request QuoteH20 Timber Beams are engineered for maximum durability and load-bearing capacity in concrete formwork systems. Designed for slab, wall, and column shuttering, our beams combine lightweight handling with industrial-grade strength to ensure safety and efficiency on the construction site.
Technical Specifications
| Feather | Specification |
| Model | Standard H20 Timber Beam |
| Height | 200mm |
| Width | 80mm |
| Flange Thickness | 40mm |
| Web Thickness | 27mm(Multi-layer Spruce/Birch/Poplar Plywood |
| Standard Weight | 4.6kg-5.0kg per meter |
| Adhesive Finish | Weather-resistant waterproof yellow coating |
| Surface Finish | Weather-resistant waterproof yellow coating |
| End Protection | Impact-resistant Caps |
Mechanical Performance
Our H20 beams are rigorously tested to meet international construction standards:• Bending Moment (M): 5 \text{ kNm}
• Shearing Force (Q): 11 \text{ kN}
• Rigidity (EI): High dimensional stability under heavy concrete loads.
Why Choose H20 Beams?
• Superior Material Selection: We offer Flanges made from Radiata Pine LVL or Solid Finnish Spruce, providing excellent nail-holding power and resistance to warping.• Heavy-Duty Webbing: The 27mm spruce/birch plywood web ensures the beam remains straight and rigid even under extreme pressure.
• All-Weather Durability: Treated with a professional weather-resistant coating and bonded with Grade D4 glue, our beams withstand rain, sun, and humidity.

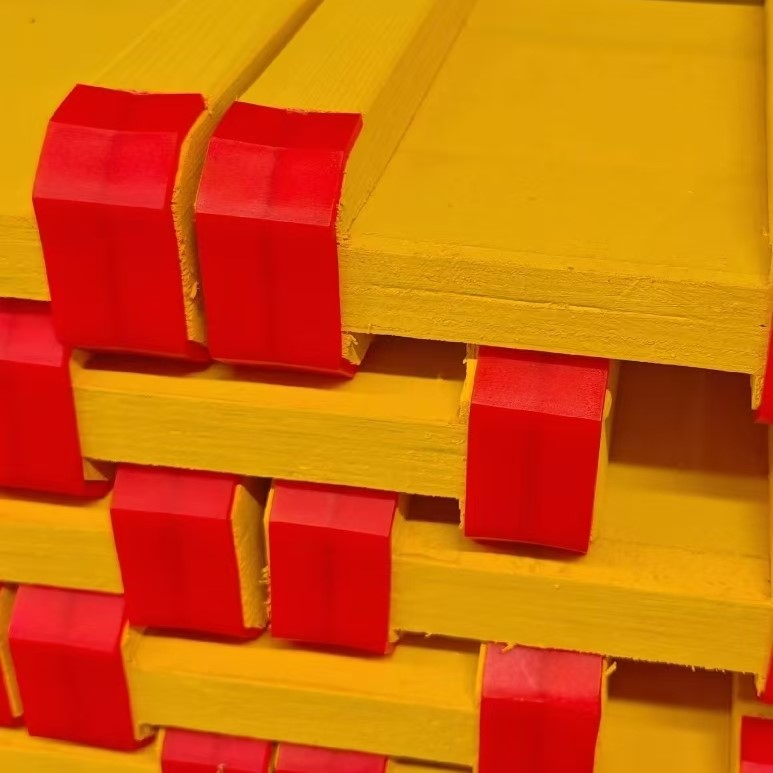

• Extended Lifespan: The reinforced plastic caps protect the ends from mechanical damage and moisture absorption, significantly increasing the reuse cycles of each beam.

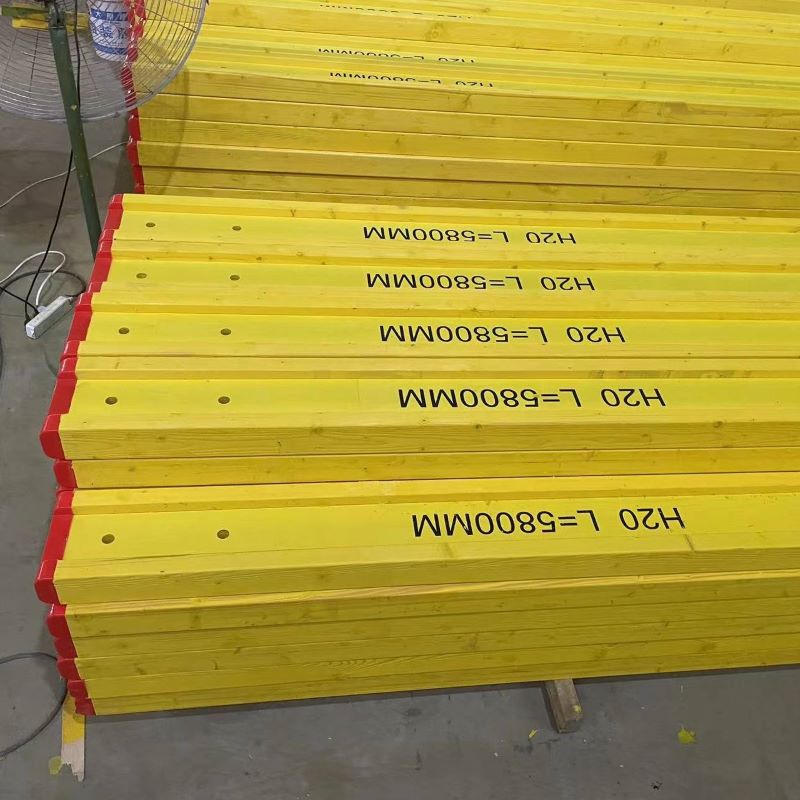

• Fully Customizable: Available in any length from 1.45m to 6m to fit your specific project requirements.
Applications
• Horizontal slab formwork systems.• Vertical wall and column formwork.
• Bridge and tunnel construction projects.
• Traditional timber shuttering support.

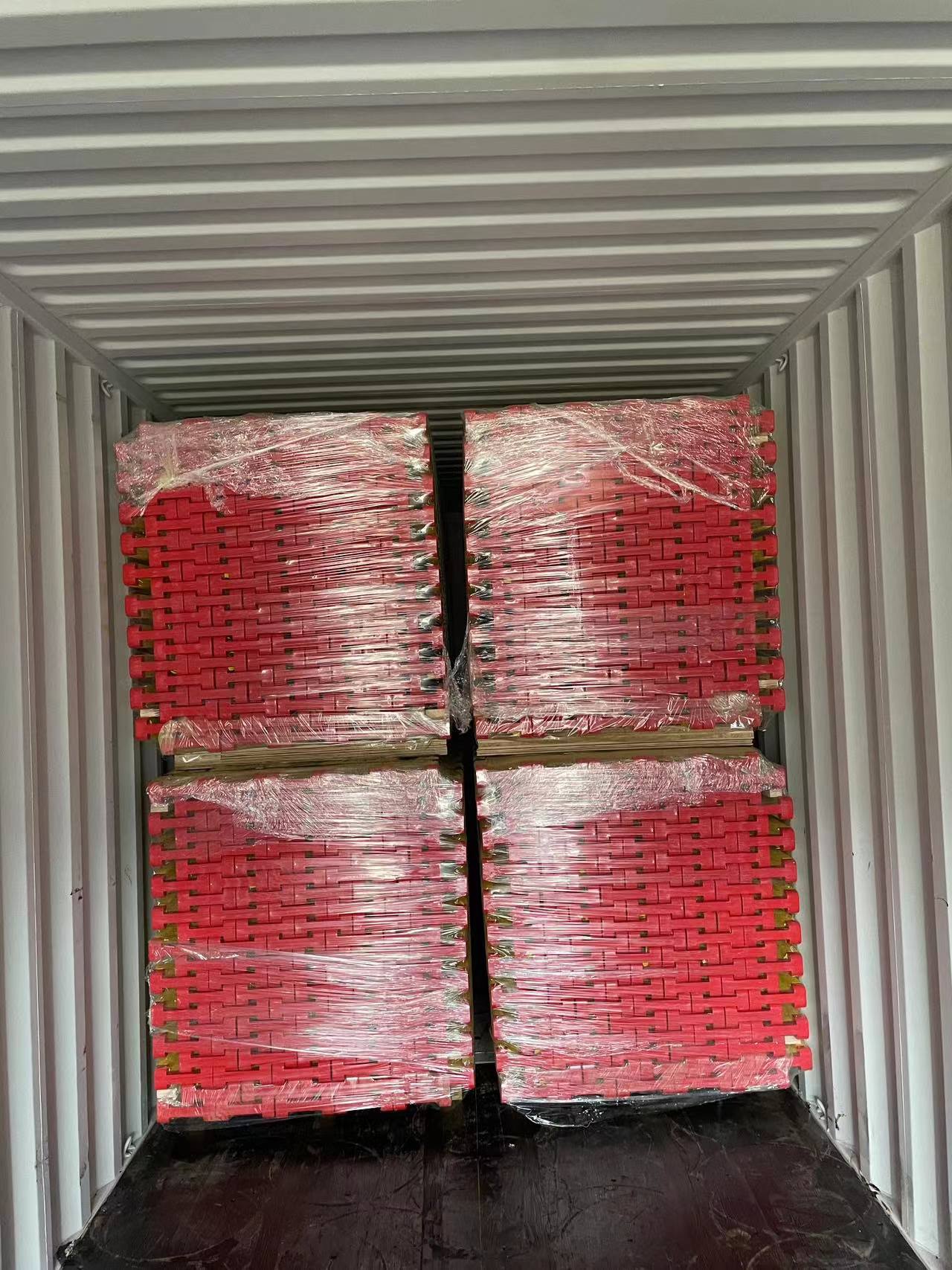

Logistics & Global Delivery
• Flexible Shipping: Worldwide delivery to your designated port or city via sea or road freight.• Factory Direct Pricing: Get the best competitive rates directly from the source.
• Reliable Supply: Large-scale production capacity to meet tight project deadlines.
Payment terms:
L/C or T/T
